Newborn Diaper Case Study: Developing a Premium Diaper for Sensitive Skin and Frequent Urination

Project Overview

A private label baby care brand approached Elintree with a clear brief: develop a premium newborn diaper specifically designed for babies with sensitive skin and frequent urination during the first weeks of life.

The client targeted the premium baby care segment and needed a product that delivered superior softness, fast absorbency, and reliable leakage protection, while maintaining a premium look and comfortable fit.

The Client’s Challenges

Newborns have very different diapering needs compared to older infants. During development, the client encountered several key difficulties.

Delicate, Sensitive Skin

Newborn skin is thinner and more fragile, making it highly susceptible to friction, irritation, and diaper rash. The diaper had to deliver:

• Ultra‑soft top‑sheet materials

• Reduced mechanical friction

• Better surface dryness to minimise irritation

Frequent, Small‑Volume Urination

Newborns urinate many times a day and night, in small but repeated amounts. This often leads to:

• Rapid local saturation of the core

• Concentrated wetness in one area

• Higher risk of side and back leakage

The diaper needed to absorb liquid quickly and distribute it evenly across the entire core.

Premium Market Expectations

To compete in the premium tier, the product also had to offer:

• Exceptional softness and comfort

• Good breathability

• A slim yet highly absorbent core

• Premium private‑label packaging with a sophisticated look

In short, the client needed a diaper that combined skin safety, wearing comfort, and advanced absorbency performance – all in one package.

Elintree’s Solution

After a thorough assessment of the requirements, we developed a custom newborn diaper focused on three pillars: softness, absorbency, and leakage prevention.

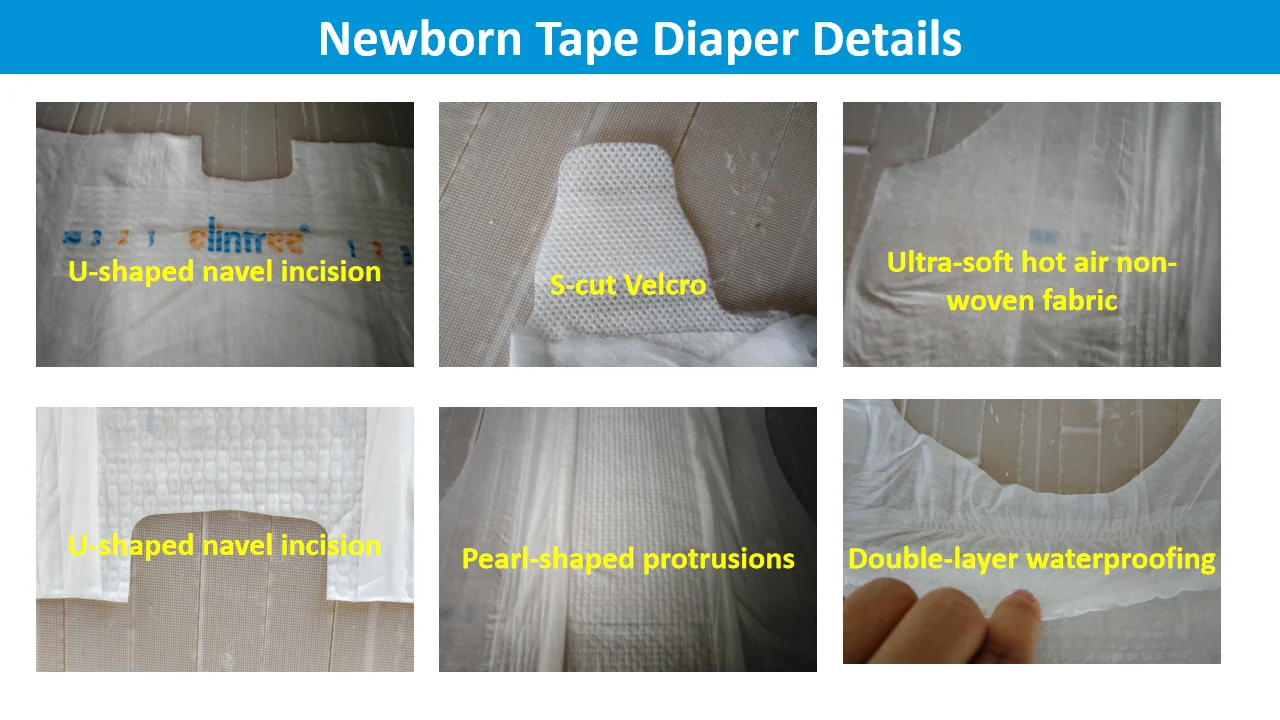

Ultra‑Soft Topsheet

We selected a premium grade ultra‑soft nonwoven topsheet to minimise friction and improve skin comfort.

• Benefits: Gentler touch, reduced redness and irritation, better comfort during extended wear.

(Image: Topsheet microstructure / softness demonstration)

Optimised Absorbent Core

The core formulation was redesigned with an optimised blend of superabsorbent polymer (SAP) and fluff pulp to achieve:

• Faster liquid intake

• Improved lateral liquid distribution

• Better fluid retention after absorption

Added Acquisition Distribution Layer (ADL)

An ADL was incorporated between the topsheet and the core to accelerate liquid transfer and promote even spreading.

• Benefits: Faster initial absorption, less surface wetness, and sustained dryness after repeated urination.

(Image: Core and ADL layer structure diagram)

Breathable Cloth‑Like Backsheet

A breathable, cloth‑like backsheet was chosen to enhance airflow and reduce heat build‑up.

• Benefits: Improved breathability, lower moisture accumulation inside the diaper, and overall better wearing comfort.

Umbilical Cord Cut‑Out

A front cut‑out was designed to protect the umbilical cord area from friction and pressure.

• Benefits: Less irritation around the belly button, better healing environment, and a distinctive premium feature.

(Image: Close‑up of the umbilical cut‑out)

Product Specifications

Parameter	Specification
Size	NB
Recommended Weight	0–5 kg
Core Type	Composite (SAP + fluff)
Absorbency Capacity	680 ml
Topsheet	Ultra‑soft nonwoven
Backsheet	Breathable cloth‑like
ADL Layer	Yes
Umbilical Cut‑Out	Yes

Laboratory Performance Validation

We conducted a series of standardised tests to verify absorbency, dryness, and leakage resistance.

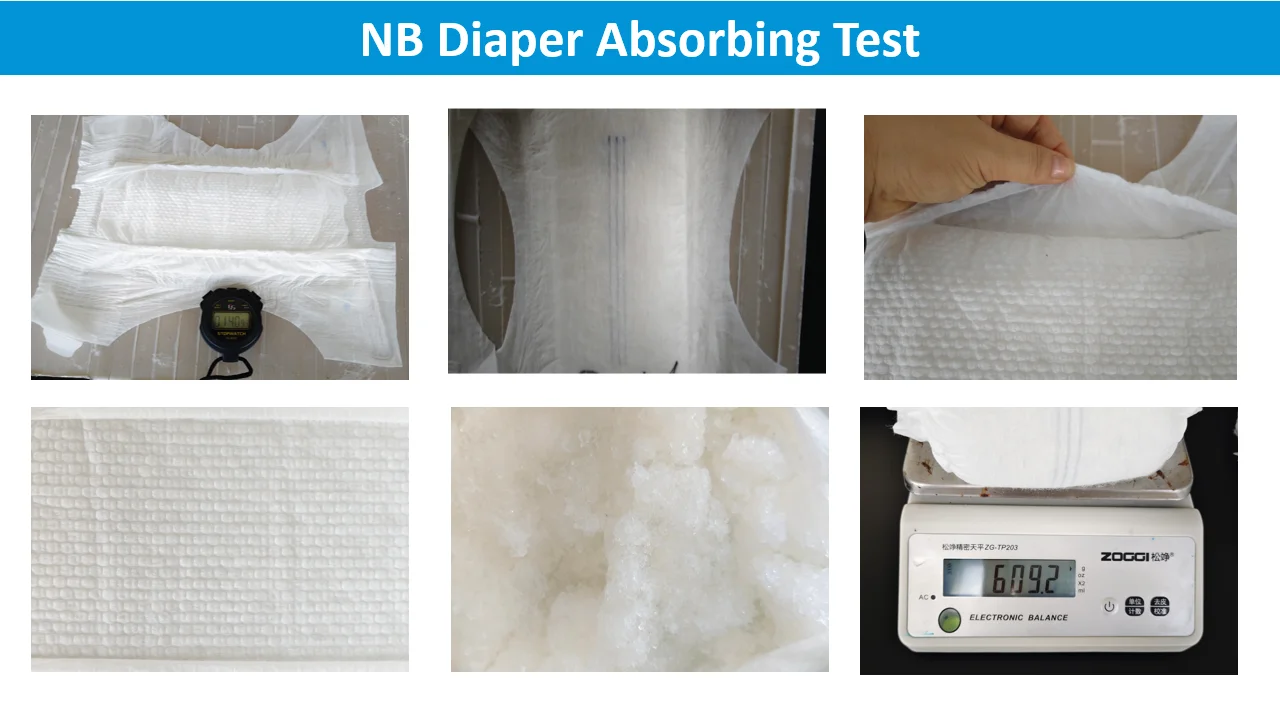

1. Absorbency Capacity Test

Method: Condition samples under standard lab temperature and humidity. Weigh dry diaper, gradually add 0.9% saline solution until saturation, then weigh wet diaper. Capacity = wet weight – dry weight.

Result: Absorbency capacity increased by 30.8% , with significantly better fluid retention.

2. Liquid Absorption Speed Test

Measures the time required for liquid to disappear from the diaper surface.

Result: First‑pour absorption speed improved by 46% , and speed remained stable over repeated pours – indicating effective handling of frequent urination.

(Image: Absorption speed test progression – 0s / 2s / 4s / fully absorbed)

3. Surface Dryness (Rewet) Test

Evaluates how much liquid returns to the surface under pressure.

Method: After the diaper has fully absorbed a set amount of liquid, place filter paper on the surface, apply standard pressure for 2 minutes, and weigh the filter paper to determine rewet.

Result: Rewet reduced by 57% , meaning surface dryness improved significantly – critical for reducing rash risk.

(Image: Rewet test steps – saturated diaper / filter paper placement / pressure weight / wetness comparison)

4. Leakage Protection Test

Simulates body movement and pressure in different positions: flat, 30° side tilt, 60° side tilt, and under compression.

Result: Better side‑leakage protection and improved barrier performance across all positions.

Performance Improvement Summary

Results & Market Impact

After optimisation, the final newborn diaper delivered substantial performance gains:

• Faster liquid uptake and visibly better surface dryness

• Lower leakage risk in real‑life use

• Improved comfort for newborn skin

• The umbilical cut‑out became a distinctive product feature

These improvements helped the client strengthen its premium market position. Key outcomes included:

• Faster sample approval from retail partners

• Stronger in‑store competitiveness

• Clear product differentiation versus mainstream alternatives

The product launched successfully and received positive feedback from both distributors and end‑users, with repeat purchase rates exceeding initial projections.

Key Takeaways for Baby Care Brands

When developing newborn diapers, absorbency alone is not enough. Brands must also give equal attention to:

• Softness – directly affects skin comfort

• Breathability – reduces heat and humidity

• Surface dryness – minimises rash and irritation

• Cord protection – shows thoughtful design and builds trust

A well‑engineered newborn diaper not only improves baby comfort but also strengthens brand reputation and competitive edge.

Elintree helps global brands create custom diaper solutions tailored to real market needs, performance targets, and private‑label requirements – from material selection to final production.
